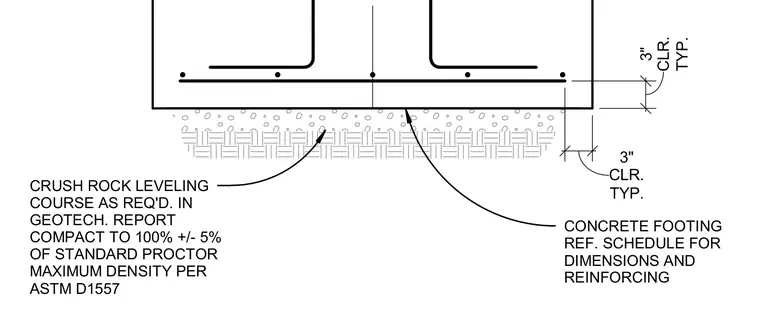

A concrete footing rests on a crushed rock leveling course as required in the geotechnical report and compacted to 100 percent plus or minus 5 percent of standard proctor maximum density per ASTM D1557. Reinforcing steel within the footing maintains a typical 3-inch clearance from the bottom and side surfaces. Footing dimensions and reinforcing are sized per schedule.
TYP. 3" CLR. TYP. 3" CLR. CRUSH ROCK LEVELING COURSE AS REQ'D. IN GEOTECH. REPORT COMPACT TO 100% +/- 5% OF STANDARD PROCTOR MAXIMUM DENSITY PER ASTM D1557 CONCRETE FOOTING REF. SCHEDULE FOR DIMENSIONS AND REINFORCING
