Cold-formed steel stud framing connects to the exterior support assembly at the parapet using a 1 1/2" x 1 1/2" x 16 gauge minimum by three-inch clip angle fastened with two number 10 screws in each leg. Number 10 screws secure each side of the framing to each typical stud. The stud sill is sized per schedule.

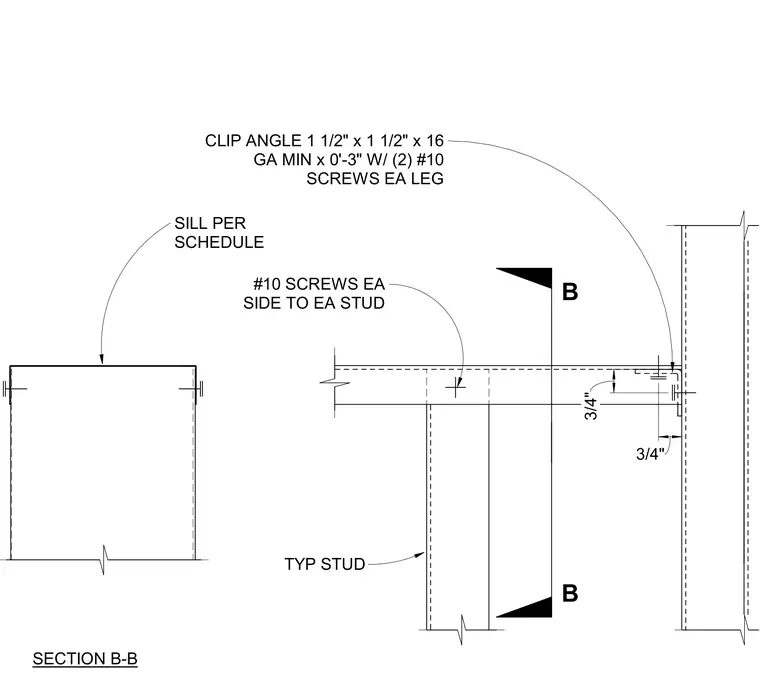

B B SECTION B-B 3/4" 3/4" CLIP ANGLE 1 1/2" x 1 1/2" x 16 GA MIN x 0'-3" W/ (2) #10 SCREWS EA LEG TYP STUD SILL PER SCHEDULE #10 SCREWS EA SIDE TO EA STUD
