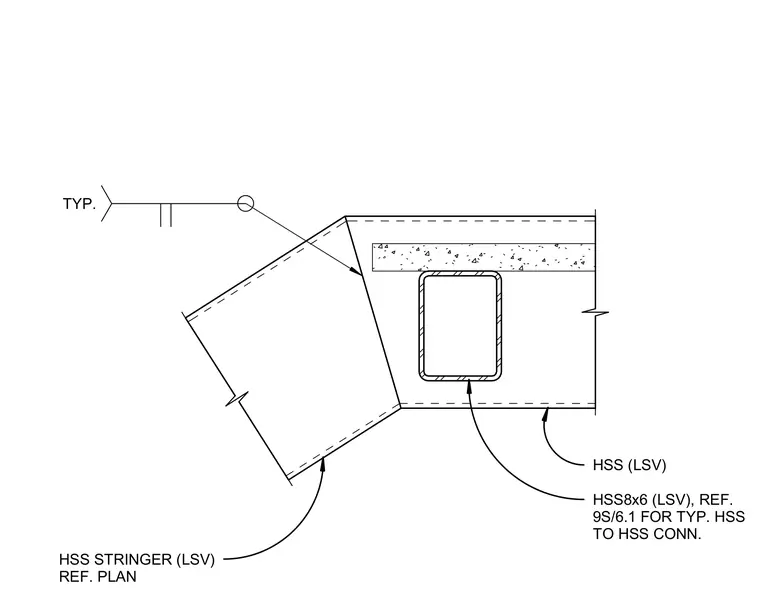

An HSS8x6 member frames into a hollow structural section stringer at a stair kink condition. The junction utilizes standard hollow structural section to hollow structural section framing per structural references. A typical weld connects the intersecting steel members.
HSS (LSV) HSS8x6 (LSV), REF. 9S/6.1 FOR TYP. HSS TO HSS CONN. HSS STRINGER (LSV) REF. PLAN TYP.
