Structural · S-75HAR

Brick Support and Steel Framing at Stair and Floor Edge

Materials

Concrete Steel Cold-formed Steel Timber / Wood Brick Metal (misc.)

Elements

Beams Walls Windows Curtain Walls Facades / Cladding Stairs Decks Arches Bracing Insulation Connections / Plates

Connections

Bracing Connection

About this detail

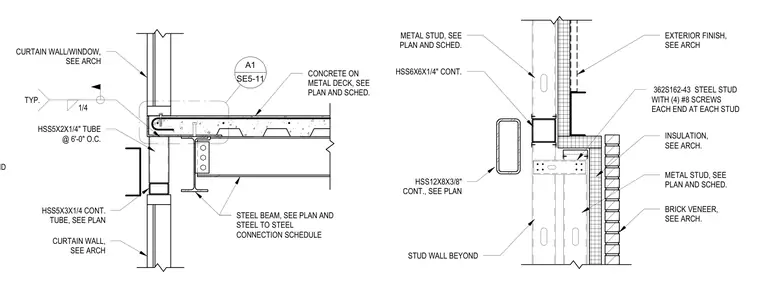

A floor edge assembly features a steel beam supporting concrete on metal deck, flanked by hollow structural section tubes including an HSS5x3x1/4 continuous tube, an HSS5x2x1/4 tube spaced at six feet on center for kickers, and an HSS12x8x3/8 continuous tube supporting the exterior envelope. A separate wall section features an HSS6x6x1/4 continuous tube framing into 362S162-43 cold-formed steel studs fastened with four number eight screws at each end, tying back to the exterior brick veneer and insulation. Curtain wall and window interfaces are coordinated per architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
