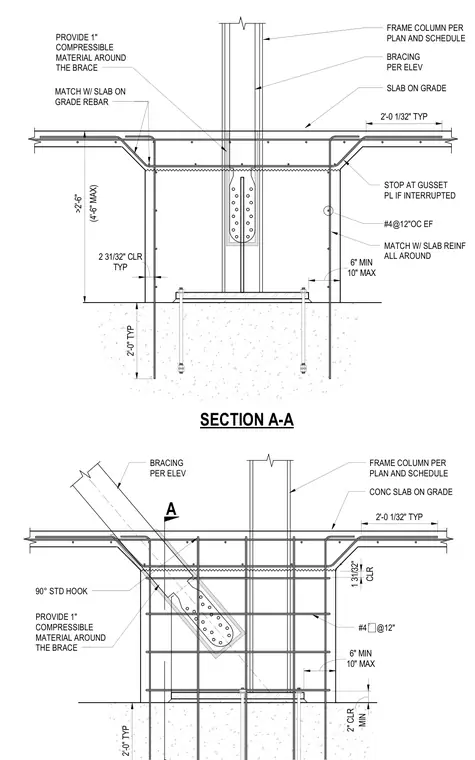

A concrete-encased frame column with an integrated bracing connection at a slab on grade features a structural brace terminating at a gusset plate anchored within the column profile, surrounded by a one-inch compressible material layer. Vertical and horizontal reinforcing bars, including number four bars at twelve inches on center each face, wrap around the column and match the slab-on-grade reinforcement. The column base incorporates anchor bolts embedded into the lower concrete footing, maintaining specified clearances and cover dimensions.
2'-0" TYP A CONC SLAB ON GRADE FRAME COLUMN PER PLAN AND SCHEDULE 2'-0 1/32" TYP #4 @12" 6" MIN 10" MAX BRACING PER ELEV 90° STD HOOK 2'-0" TYP SLAB ON GRADE FRAME COLUMN PER PLAN AND SCHEDULE 2'-0 1/32" TYP #4@12"OC EF 6" MIN 10" MAX MATCH W/ SLAB ON GRADE REBAR (4'-6" MAX) >2'-6" TYP 2 31/32" CLR MATCH W/ SLAB REINF ALL AROUND STOP AT GUSSET PL IF INTERRUPTED SECTION A-A MIN 2" CLR CLR 1 31/32" PROVIDE 1" COMPRESSIBLE MATERIAL AROUND THE BRACE PROVIDE 1" COMPRESSIBLE MATERIAL AROUND THE BRACE BRACING PER ELEV
