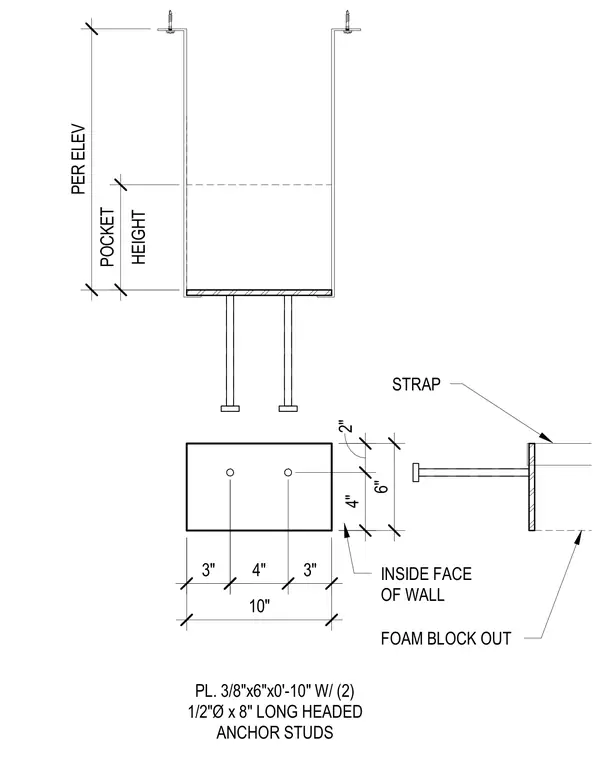

A 3/8-inch by 6-inch by 0-foot 10-inch steel plate is anchored with two 1/2-inch diameter by 8-inch long headed anchor studs welded to the plate. The assembly features a strap extending from the plate and is set relative to the inside face of the wall and foam block out. Vertical pocket height is dimensioned per elevation.
3" 2" 4" 4" 3" PL. 3/8"x6"x0'-10" W/ (2) 1/2"Ø x 8" LONG HEADED ANCHOR STUDS INSIDE FACE OF WALL FOAM BLOCK OUT STRAP PER ELEV HEIGHT POCKET 10" 6"
