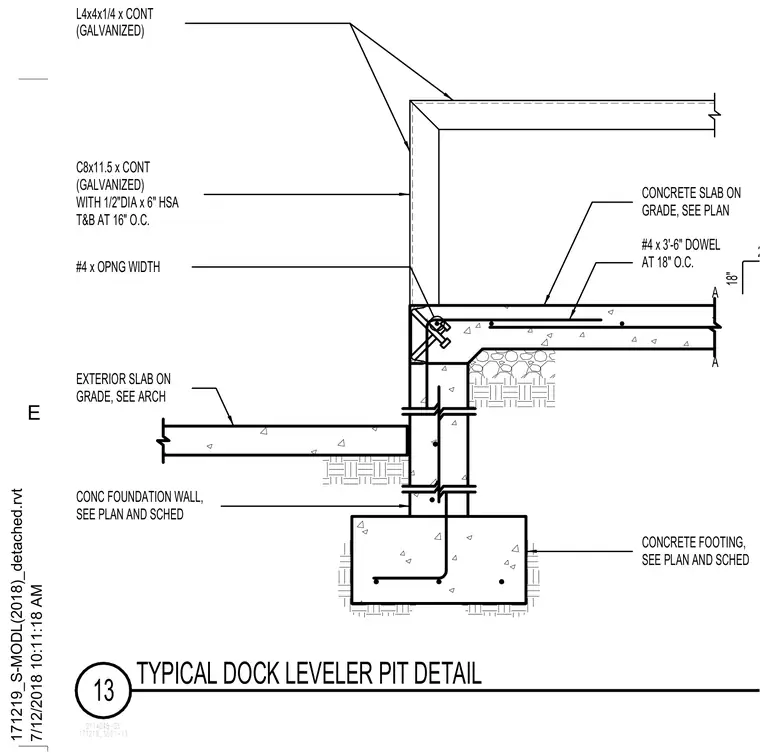

A concrete foundation wall and footing supports an exterior slab on grade adjacent to a loading dock pit. The pit edge is protected by a continuous galvanized channel (C8x11.5) anchored with half-inch diameter by six-inch heavy stud anchors at top and bottom spaced at sixteen inches on center. A continuous galvanized angle (L4x4x1/4) reinforces the top corner of the pit curb. Number four dowels measuring three feet six inches long tie the concrete slab on grade to the pit wall at eighteen inches on center, supplemented by number four bars spanning the opening width.
2114048-05 171219_S501-13 13 TYPICAL DOCK LEVELER PIT DETAIL 18" 24" A AT 18" O.C. #4 x 3'-6" DOWEL CONCRETE SLAB ON GRADE, SEE PLAN A (GALVANIZED) (GALVANIZED) WITH 1/2"DIA x 6" HSA T&B AT 16" O.C. #4 x OPNG WIDTH L4x4x1/4 x CONT C8x11.5 x CONT EXTERIOR SLAB ON GRADE, SEE ARCH CONCRETE FOOTING, SEE PLAN AND SCHED CONC FOUNDATION WALL, SEE PLAN AND SCHED E 7/12/2018 10:11:18 AM 171219_S-MODL(2018)_detached.rvt
