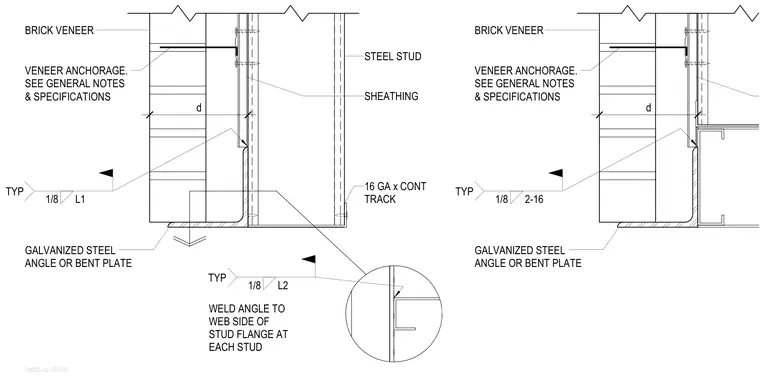

A galvanized steel angle or bent plate supports a brick veneer wall assembly in front of exterior steel stud framing. The continuous support angle is welded to the web side of the stud flange at each stud with a one-eighth inch fillet weld. Exterior sheathing and sixteen-gauge continuous tracks complete the steel backup wall. Veneer anchors tie the masonry back to the structural backing per project specifications.
SW003-A2 LEDGER BRICK VENEER GALVANIZED STEEL ANGLE OR BENT PLATE VENEER ANCHORAGE. SEE GENERAL NOTES & SPECIFICATIONS 16 GA x CONT TRACK SHEATHING STEEL STUD 1/8 L1 TYP 1/8 L2 TYP WELD ANGLE TO WEB SIDE OF STUD FLANGE AT EACH STUD d BRICK VENEER GALVANIZED STEEL ANGLE OR BENT PLATE VENEER ANCHORAGE. SEE GENERAL NOTES & SPECIFICATIONS 1/8 2-16 TYP d
