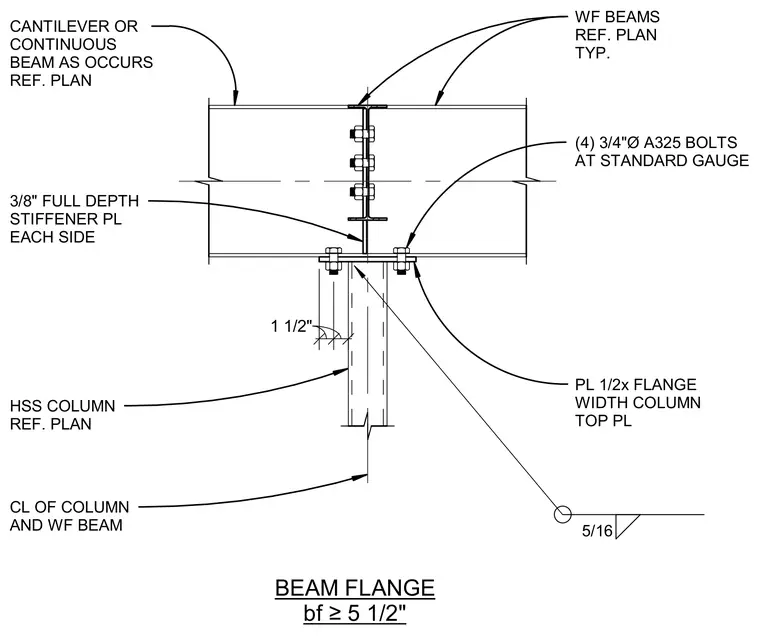

Continuous or cantilevered wide-flange beams frame into a hollow structural section column top plate with a width matching the beam flange. A half-inch column top plate is welded to the HSS column with a five-sixteenth inch fillet weld. Three-quarter inch diameter A325 bolts connect the beam flanges to the top plate at standard gauge. Three-eighth inch full-depth stiffener plates are welded to each side of the column web aligned with the beam flanges.
WF BEAMS REF. PLAN TYP. BEAM FLANGE bf ≥5 1/2" CL OF COLUMN AND WF BEAM HSS COLUMN REF. PLAN 3/8" FULL DEPTH STIFFENER PL EACH SIDE (4) 3/4"Ø A325 BOLTS AT STANDARD GAUGE PL 1/2x FLANGE WIDTH COLUMN TOP PL 5/16 CANTILEVER OR CONTINUOUS BEAM AS OCCURS REF. PLAN 1 1/2" 1 1/2"
