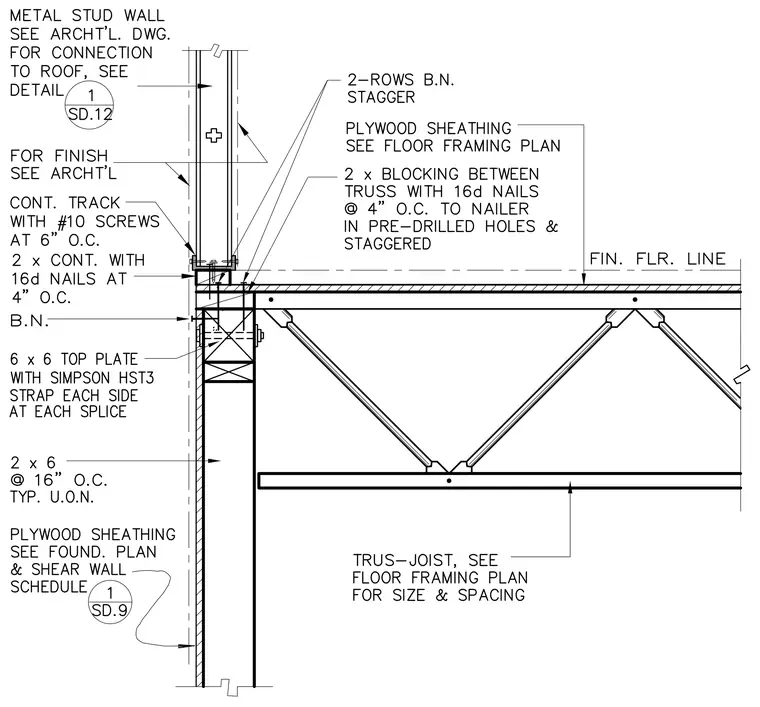

A metal stud wall intersects a wood floor framing system supported by a wood top plate. The metal stud wall features a continuous track fastened with number ten screws at six inches on center and two-inch continuous blocking attached with sixteen-penny nails at four inches on center in pre-drilled and staggered holes. The framing incorporates a six-by-six top plate tied with Simpson HST3 straps on each side at splices, supporting floor trusses and plywood sheathing. Two rows of staggered bolts secure the members, while a double two-by-six stud wall at sixteen inches on center runs below with exterior plywood sheathing.
