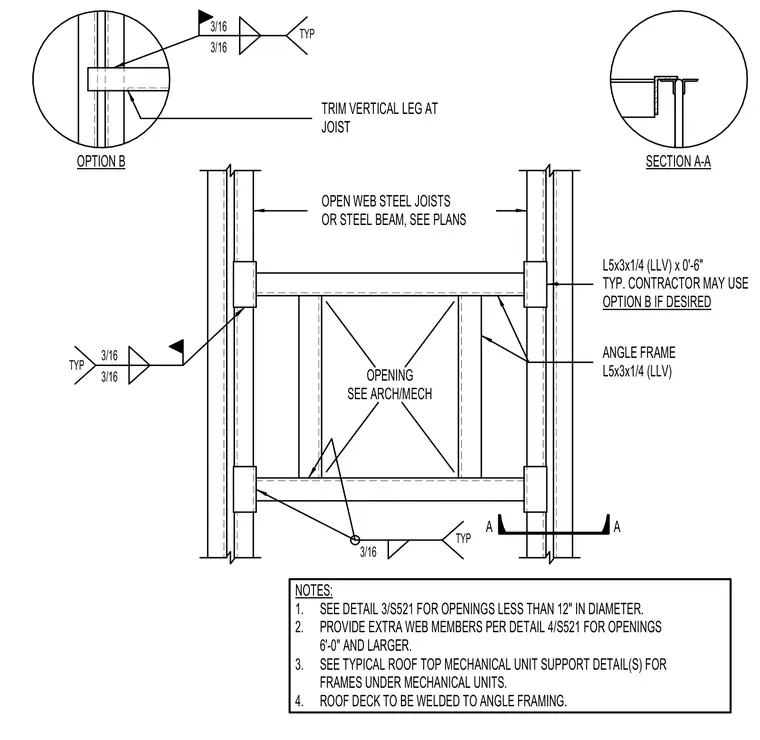

Structural framing for a roof opening located between open web steel joists or steel beams as sized per plans. The framing consists of an angle frame made from L5x3x1/4 angles, with a six-inch leg option and an alternative Option B connection detail. Three-sixteenth-inch fillet welds secure the angle framing components typically throughout the assembly. The vertical leg of the angle is trimmed at the joist interface. Roof decking welds directly to the supporting angle framing, and additional notes reference smaller penetrations, extra web members for openings six feet and larger, and mechanical unit support frames.
OPENING SEE ARCH/MECH OPTION B NOTES: 1. SEE DETAIL 3/S521 FOR OPENINGS LESS THAN 12" IN DIAMETER. 2. PROVIDE EXTRA WEB MEMBERS PER DETAIL 4/S521 FOR OPENINGS 6'-0" AND LARGER. 3. SEE TYPICAL ROOF TOP MECHANICAL UNIT SUPPORT DETAIL(S) FOR FRAMES UNDER MECHANICAL UNITS. 4. ROOF DECK TO BE WELDED TO ANGLE FRAMING. TRIM VERTICAL LEG AT JOIST OPEN WEB STEEL JOISTS OR STEEL BEAM, SEE PLANS L5x3x1/4 (LLV) x 0'-6" TYP. CONTRACTOR MAY USE OPTION B IF DESIRED ANGLE FRAME L5x3x1/4 (LLV) 3/16 TYP TYP 3/16 3/16 3/16 TYP 3/16 A A SECTION A-A
