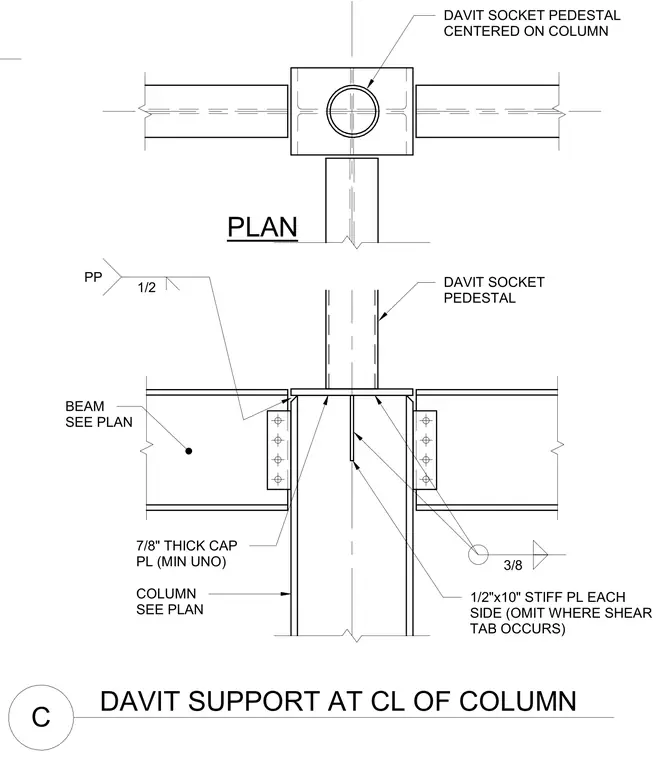

A seven-eighths-inch thick cap plate caps the structural steel column and supports a centered davit socket pedestal. Beams frame into the column via shear tabs, with sizes sized per plan. One-half-inch by ten-inch stiffener plates are welded to each side of the column web, omitted where shear tabs occur.
DAVIT SUPPORT AT CL OF COLUMN C PLAN 7/8" THICK CAP PL (MIN UNO) COLUMN SEE PLAN BEAM SEE PLAN 1/2"x10" STIFF PL EACH SIDE (OMIT WHERE SHEAR TAB OCCURS) DAVIT SOCKET PEDESTAL DAVIT SOCKET PEDESTAL CENTERED ON COLUMN 3/8 1/2 PP
