An L2x2x3/16 angle is positioned at each flange with edge forms per Table K.1. Closure plates are held back up to a maximum of one-half inch to clear welds typically. Fillet welds connect the assembly components as indicated.

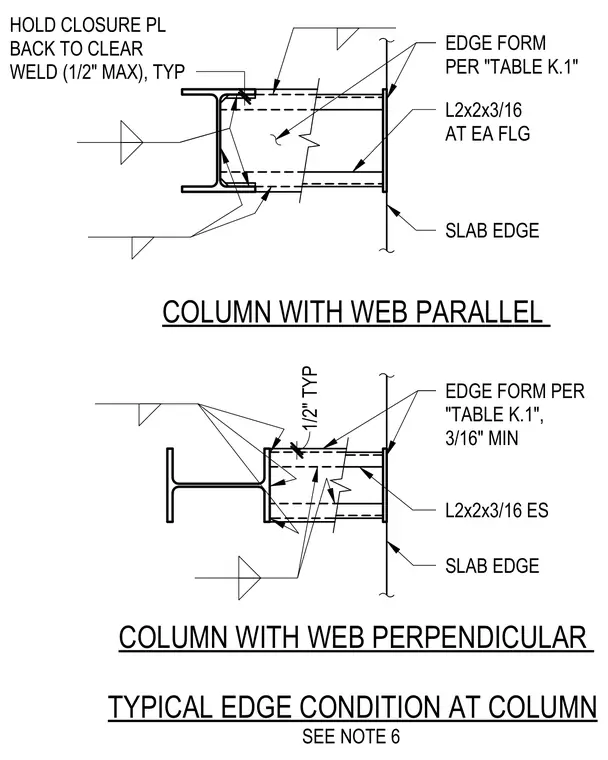

L2x2x3/16 ES EDGE FORM PER "TABLE K.1", 3/16" MIN SLAB EDGE EDGE FORM PER "TABLE K.1" L2x2x3/16 AT EA FLG TYPICAL EDGE CONDITION AT COLUMN COLUMN WITH WEB PARALLEL COLUMN WITH WEB PERPENDICULAR SLAB EDGE SEE NOTE 6 1/2" HOLD CLOSURE PL BACK TO CLEAR WELD (1/2" MAX), TYP 1/2" TYP
