Structural · S-73VYB

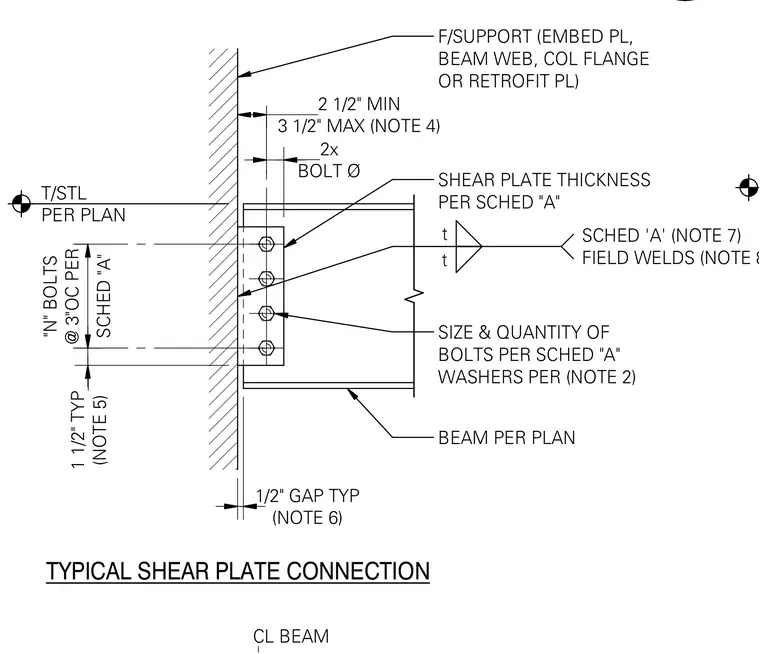

Typical Shear Plate Connection

Materials

Steel

Elements

Beams Anchors / Embeds Connections / Plates

Connections

Welded Connection Bolted Connection Embed Plate

About this detail

A standard framing connection joins a steel beam web to a supporting member via a welded shear plate and bolted web fasteners. The shear plate thickness and bolt quantity and size are sized per schedule "A", with bolts spaced at three inches on center. The plate is field-welded to the support, which may consist of an embed plate, beam web, column flange, or retrofit plate. A one-half-inch gap is maintained between the beam end and the support.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
