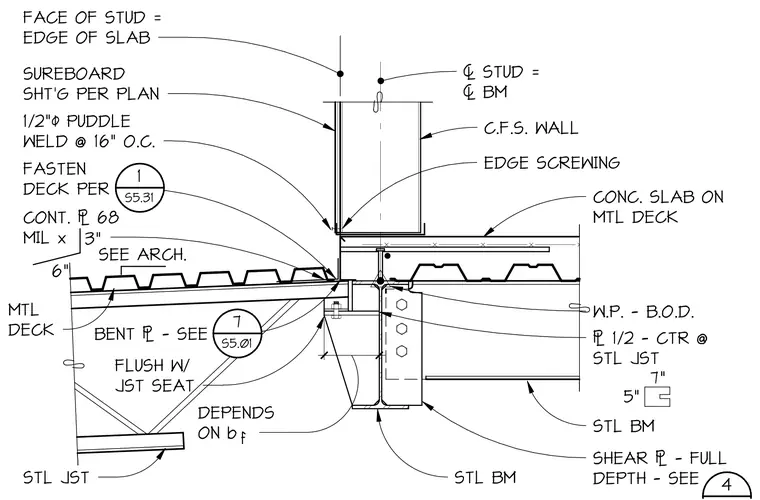

A cold-formed steel stud wall bears directly on a concrete slab over metal deck, with the stud centerline aligned with the supporting steel beam below. A continuous 68-mil plate fastens the metal deck with half-inch puddle welds at sixteen inches on center. The steel joist seat is flush with the metal deck, utilizing a bent plate and shear plate connection with full depth configuration. Sureboard sheathing is applied per plan with edge screwing along the exterior face of the stud.
CONC. SLAB ON MTL DECK STUD = BM CONT. 68 MIL x FASTEN DECK PER 1/2" PUDDLE WELD @ 16" O.C. 1 S5.31 6" 3" MTL DECK FLUSH W/ JST SEAT STL JST DEPENDS ON b f C.F.S. WALL W.P. - B.O.D. BENT - SEE 7 S5.01 1/2 - CTR @ STL JST SUREBOARD SHT'G PER PLAN FACE OF STUD = EDGE OF SLAB 5" 7" STL BM SHEAR - FULL DEPTH - SEE STL BM 4 SEE ARCH. EDGE SCREWING 6 7 /8 "
