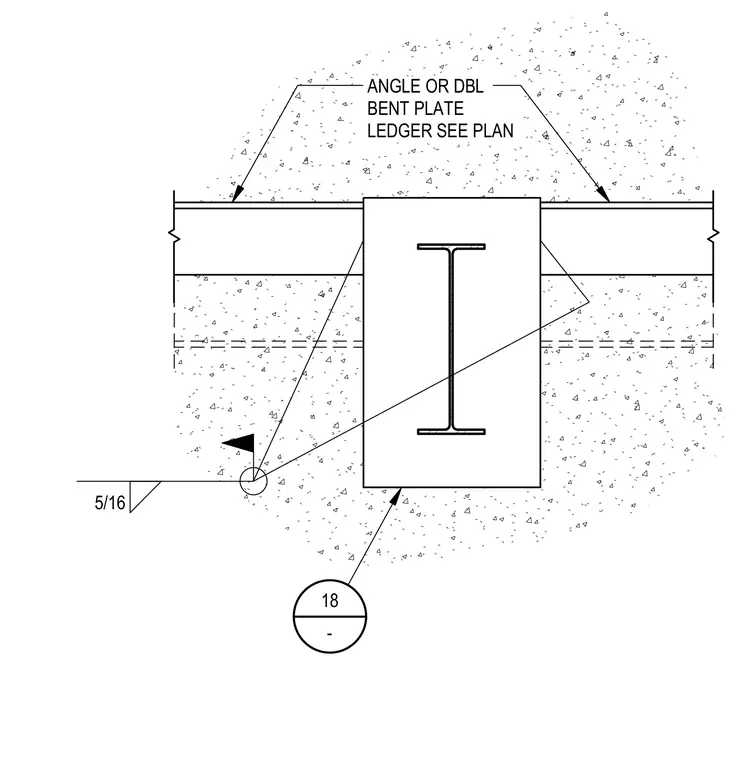

An angle or double bent plate ledger connects to the structural steel framing, sized per plan. A five-sixteenth inch fillet weld secures the assembly.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
