Welded Steel Moment Connection Access Hole Geometry

About this detail

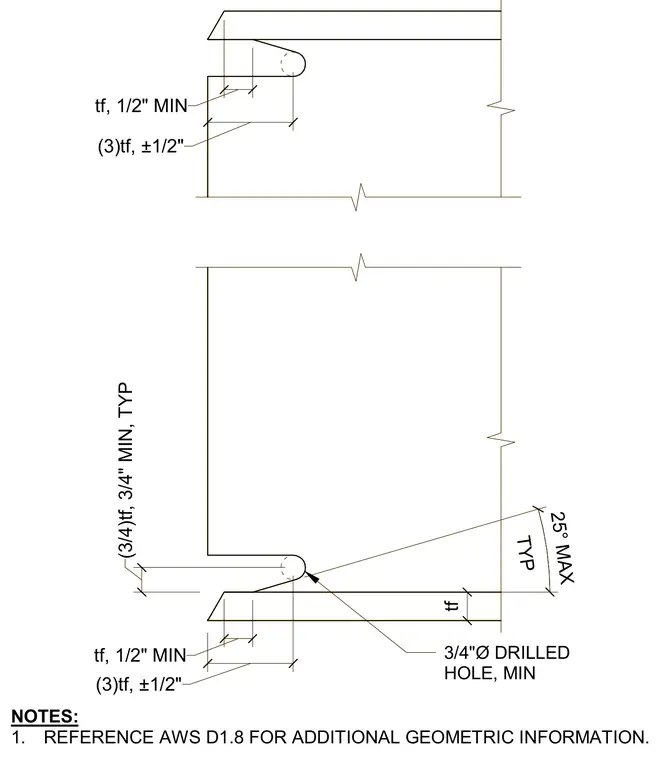

Weld access holes in heavy steel framing connections per AWS D1.8 require a three-quarter inch diameter drilled hole with a minimum clearance based on the flange thickness tf. Dimensions include a one-half inch minimum offset, three times the flange thickness plus-or-minus one-half inch, and a maximum twenty-five degree angle typical for the cutback. Notes direct the fabricator to reference AWS D1.8 for additional geometric information.
