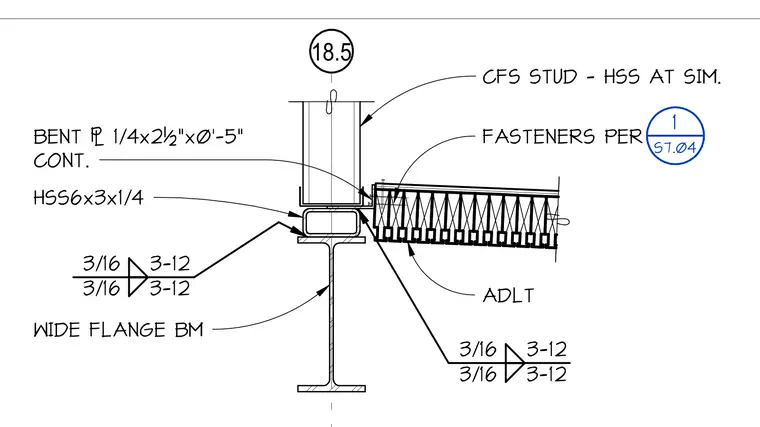

A cold-formed steel stud bears on a hollow structural section measuring 6x3x1/4, which is supported by a wide flange beam. A continuous bent plate measuring 1/4 by 2 1/2 inches by 0 feet 5 inches connects the assembly, secured with three-sixteenths inch fillet welds at 12 inches spacing. Fasteners are installed per the bent plate detail, and similar connections occur at adjacent conditions referencing sheet S7.04.
18.5 WIDE FLANGE BM ADLT FASTENERS PER BENT & 1/4x2½"x0'-5" CONT. CFS STUD - HSS AT SIM. 1 S7.04 3/16 3-12 3/16 3-12 HSS6x3x1/4 3/16 3-12 3/16 3-12
