A structural steel column connects below using a cap plate secured by three-quarter inch diameter ASTM A307 bolts typical throughout the assembly. Spacing dimensions are set at four and a half inches typical in both horizontal and vertical directions.

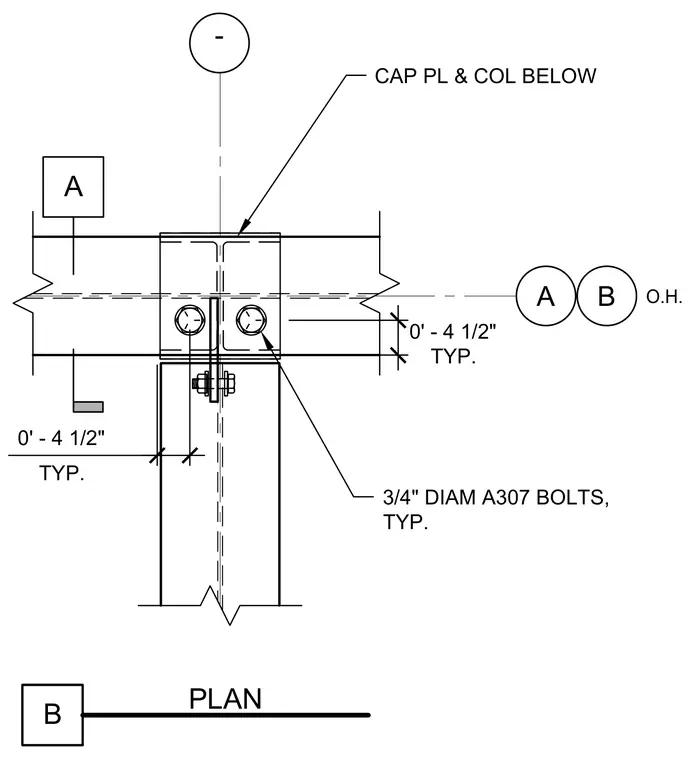

- CAP PL & COL BELOW B PLAN 0' - 4 1/2" TYP. A 3/4" DIAM A307 BOLTS, TYP. 0' - 4 1/2" TYP. A B O.H.
