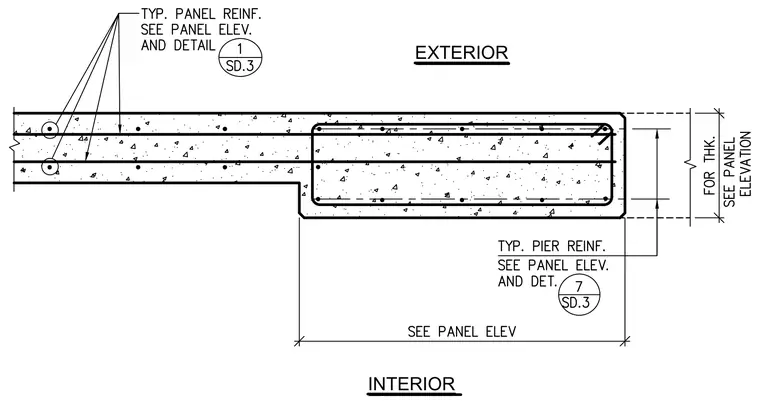

A precast concrete wall panel features a thickened pier section at the edge with internal reinforcing bars. Typical panel reinforcement is called out to refer to the panel elevation and detail 1 on sheet SD.3. The pier reinforcement is similarly referenced to the panel elevation and detail 7 on sheet SD.3. Panel thickness and dimensions are sized per the panel elevation.
