Structural · S-738YE

Concrete Tilt-Up Panel Reinforcing Diagrams

Materials

Elements

Beams Facades / Cladding Arches Reinforcing

About this detail

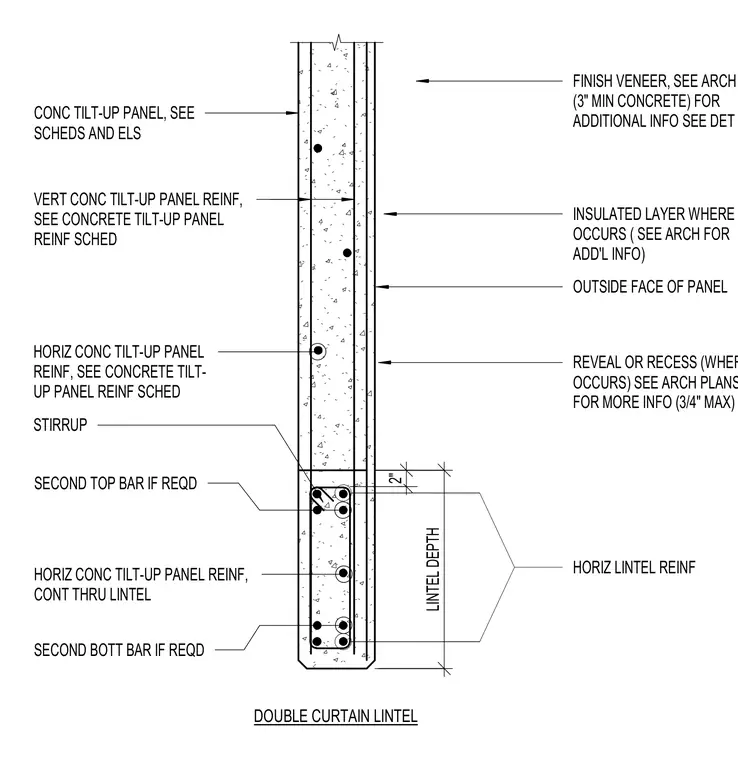

A concrete tilt-up wall panel is configured with a double curtain lintel and specific reinforcing arrangements. The vertical and horizontal concrete tilt-up panel reinforcement is sized per the associated schedules, incorporating continuous horizontal bars through the lintel, stirrups, and optional second top and bottom bars as required. An insulated layer and architectural finish veneer are specified on the exterior face where applicable, maintaining a minimum 3-inch concrete thickness. Reveals or recesses are detailed with a maximum depth of 3/4 inch based on architectural plans, while the lintel depth dimension is designated on the drawing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
