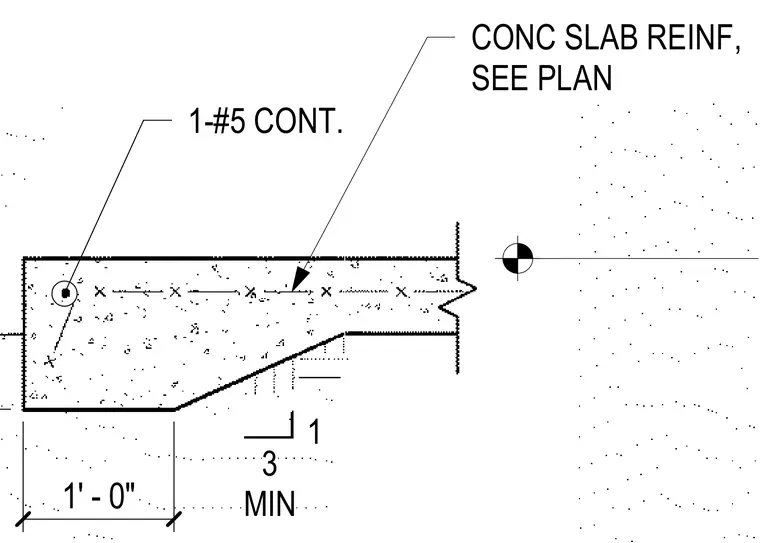

A concrete slab edge features one continuous number five reinforcing bar placed longitudinally near the perimeter, alongside additional concrete slab reinforcement sized per plan. The slab edge profile steps down with a slope maintaining a minimum three to one ratio, spanning a one foot zero inch dimension at the thickened termination. Concrete reinforcement placement and spacing follow structural engineering plans.
1-#5 CONT. CONC SLAB REINF, SEE PLAN 1' - 0" 3 MIN 1
