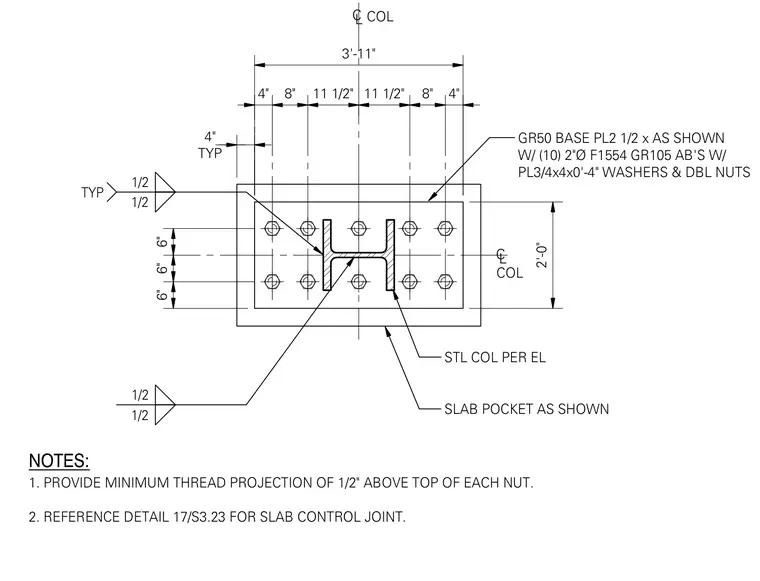

A structural steel column base plate connection is set within a concrete slab pocket. The assembly features a Grade 50 base plate measuring two and one-half inches thick and sized as shown, secured by ten two-inch diameter ASTM F1554 Grade 105 anchor bolts equipped with three-quarter by four by zero-feet four-inch washers and double nuts. The steel column is positioned per the elevation drawings. Anchor bolts require a minimum thread projection of one-half inch above the top of each nut. A slab control joint reference is provided for coordination.
GR50 BASE PL2 1/2 x AS SHOWN W/ (10) 2"Ø F1554 GR105 AB'S W/ PL3/4x4x0'-4" WASHERS & DBL NUTS COL NOTES: 1. PROVIDE MINIMUM THREAD PROJECTION OF 1/2" ABOVE TOP OF EACH NUT. 2. REFERENCE DETAIL 17/S3.23 FOR SLAB CONTROL JOINT. C L 4" 8" 11 1/2" 11 1/2" 8" 4" TYP 4" 3'-11" 1/2 1/2 1/2 1/2 TYP COL C L 6" 6" 6" 2'-0" STL COL PER EL SLAB POCKET AS SHOWN
