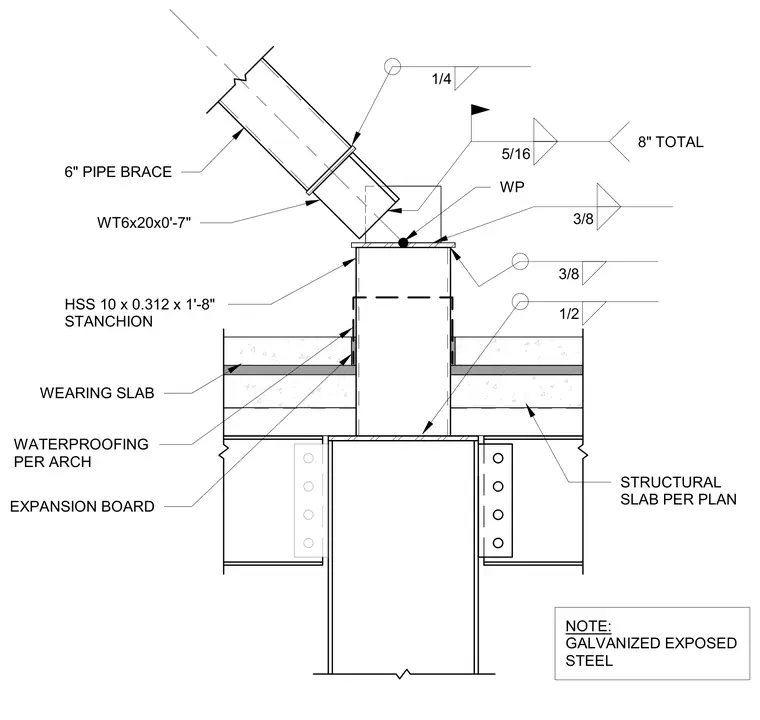

A hollow structural section stanchion measuring ten inches by zero point three one two inches by one foot eight inches connects to a structural slab per plan and a wearing slab with waterproofing per arch. A six-inch pipe brace frames into a WT six by twenty by zero foot seven inch stub with a three-eighths-inch work point plate, secured using one-quarter-inch and five-sixteenths-inch fillet welds. An expansion board surrounds the penetration through the wearing slab and structural layers. All exposed structural steel is galvanized per project notes.
6" PIPE BRACE WT6x20x0'-7" HSS 10 x 0.312 x 1'-8" STANCHION 1/4 5/16 8" TOTAL 3/8 WP 3/8 1/2 WEARING SLAB WATERPROOFING PER ARCH STRUCTURAL SLAB PER PLAN NOTE: GALVANIZED EXPOSED STEEL EXPANSION BOARD
