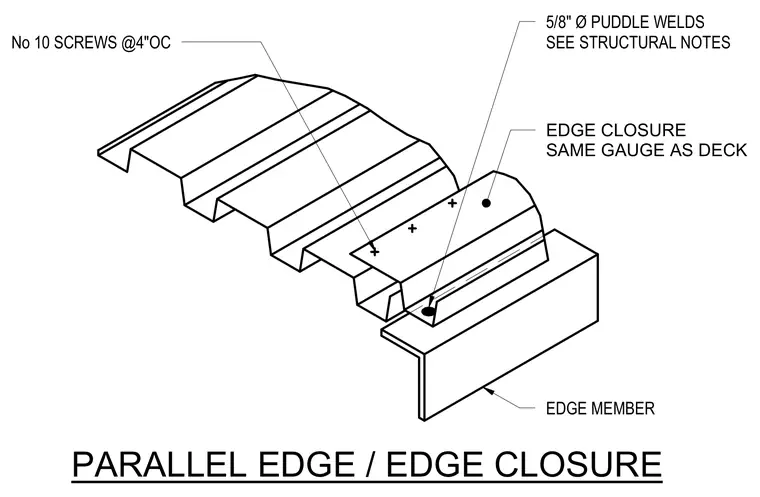

An edge closure of the same gauge as the metal deck runs parallel to the edge member. The closure is fastened to the deck and support framing using number 10 screws spaced at four inches on center. Five-eighths inch diameter puddle welds secure the deck to the structural framing per structural notes.
PARALLEL EDGE / EDGE CLOSURE 5/8" Ø PUDDLE WELDS SEE STRUCTURAL NOTES EDGE CLOSURE SAME GAUGE AS DECK No 10 SCREWS @4"OC EDGE MEMBER
