A three-eighths-inch single shear plate connects the web of a supported steel beam to the supporting steel beam web. The plate is fastened with a vertical row of three bolts and has standard or horizontal short slotted holes with specified edge distances and spacings. A one-quarter-inch fillet weld secures the plate. The connection follows American Institute of Steel Construction criteria for framed beam connections, with bolt quantities and sizes referenced in the structural drawing schedule.

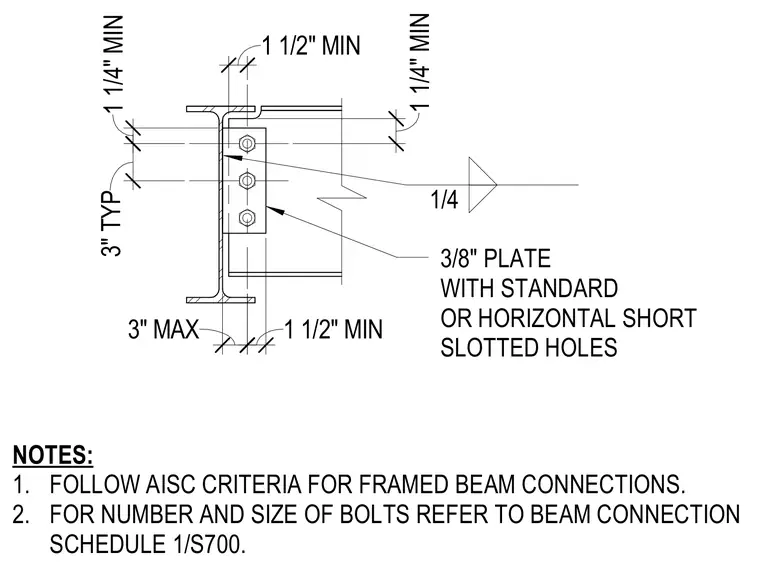

NOTES: 1. FOLLOW AISC CRITERIA FOR FRAMED BEAM CONNECTIONS. 2. FOR NUMBER AND SIZE OF BOLTS REFER TO BEAM CONNECTION SCHEDULE 1/S700. 3/8" PLATE WITH STANDARD OR HORIZONTAL SHORT SLOTTED HOLES 1 1/2" MIN 1 1/4" MIN 3" TYP 1 1/4" MIN 3" MAX 1 1/2" MIN 1/4
