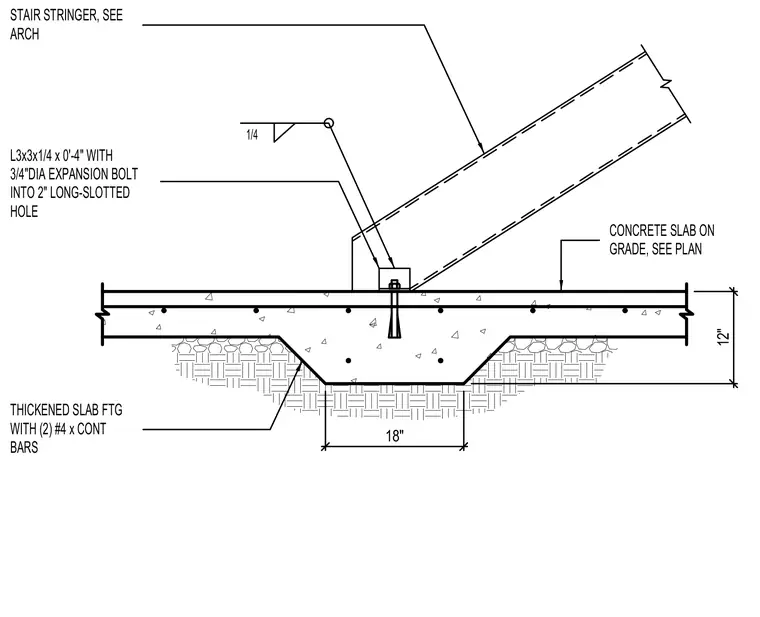

The stair stringer bears onto a structural angle fastened to a thickened concrete slab-on-grade footing. An L3x3x1/4 structural steel angle, four inches long, is anchored to the concrete using a three-quarter-inch-diameter expansion bolt set into a two-inch long-slotted hole. The stair stringer connects to the angle via a quarter-inch fillet weld. The concrete foundation features a thickened slab footing reinforced with two continuous number four rebar bars, supporting a standard concrete slab-on-grade.
L3x3x1/4 x 0'-4" WITH 3/4"DIA EXPANSION BOLT 1/4 THICKENED SLAB FTG WITH (2) #4 x CONT BARS CONCRETE SLAB ON GRADE, SEE PLAN STAIR STRINGER, SEE ARCH INTO 2" LONG-SLOTTED HOLE 12" 18"
