A thickened concrete slab-on-grade footing supports the base of a stair stringer. Two continuous number five reinforcing bars run longitudinally through the one-foot-deep thickened concrete footing, supplemented by number five reinforcing bars spaced at twelve inches on center. The thickened footing extends twelve inches beyond each stair stringer, and stringer attachment to the slab is provided by the stair supplier. Standard concrete slab-on-grade reinforcing continues through the surrounding floor assembly.

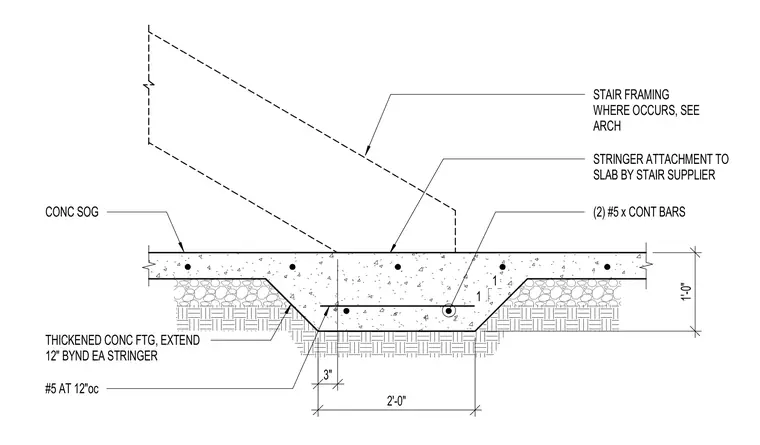

STAIR FRAMING WHERE OCCURS, SEE ARCH CONC SOG #5 AT 12"oc 1 1 (2) #5 x CONT BARS THICKENED CONC FTG, EXTEND 12" BYND EA STRINGER 3" 1'-0" 2'-0" STRINGER ATTACHMENT TO SLAB BY STAIR SUPPLIER
