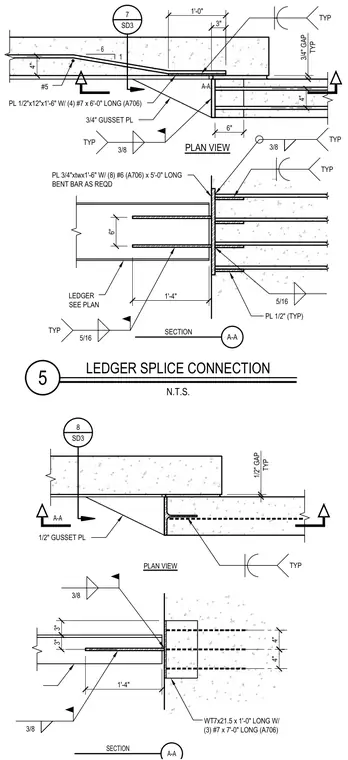

A ledger splice connection features a one-half-inch thick plate embedded with four number seven reinforcing bars measuring six feet long, connected via a three-quarter-inch gusset plate and three-eighths-inch fillet welds. An alternate section utilizes a WT7x21.5 structural tee with three number seven reinforcing bars measuring seven feet long tied with number six bent bars as required. A three-quarter-inch gap is maintained at the joint, with typical five-sixteenths fillet welds joining the steel components.
5 LEDGER SPLICE CONNECTION N.T.S. 3/4" GAP TYP 1'-4" 5/16 A-A TYP TYP 3/4" GUSSET PL LEDGER SEE PLAN 1 6 4" 3" 1'-0" #5 4" 6" 6" TYP 3/8 5/16 TYP TYP 7 SD3 3/8 A-A SECTION PL 1/2"x12"x1'-6" W/ (4) #7 x 6'-0" LONG (A706) PL 3/4"xtwx1'-6" W/ (8) #6 (A706) x 5'-0" LONG BENT BAR AS REQD PL 1/2" (TYP) PLAN VIEW 1/2" GAP TYP TYP 4" 4" 3" 3" 1'-4" 3/8 3/8 A-A A-A SECTION PLAN VIEW 1/2" GUSSET PL 8 SD3 WT7x21.5 x 1'-0" LONG W/ (3) #7 x 7'-0" LONG (A706)
