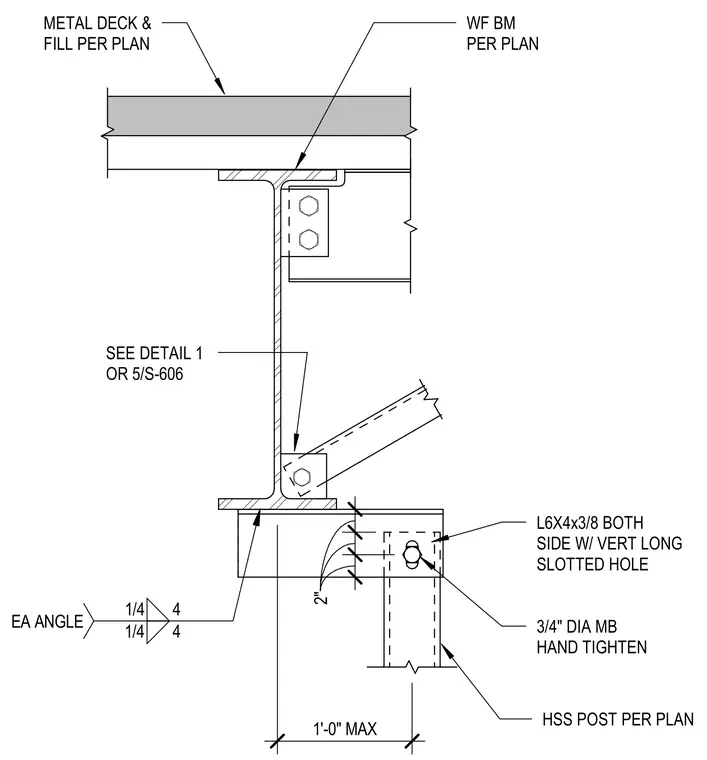

An HSS post connects to the underside of a wide flange column flange using double angles sized 6x4x3/8 with vertical long slotted holes on both sides. The angles fasten to the post with 3/4-inch diameter machine bolts left hand-tightened. The angles weld to the column flange with quarter-inch fillet welds top and bottom. A wide flange beam supports a metal deck with fill per plan at the top of the column.
WF BM PER PLAN L6X4x3/8 BOTH SIDE W/ VERT LONG SLOTTED HOLE 3/4" DIA MB HAND TIGHTEN HSS POST PER PLAN METAL DECK & FILL PER PLAN 1/4 4 1/4 4 EA ANGLE 2"2"2" 1'-0" MAX SEE DETAIL 1 OR 5/S-606
