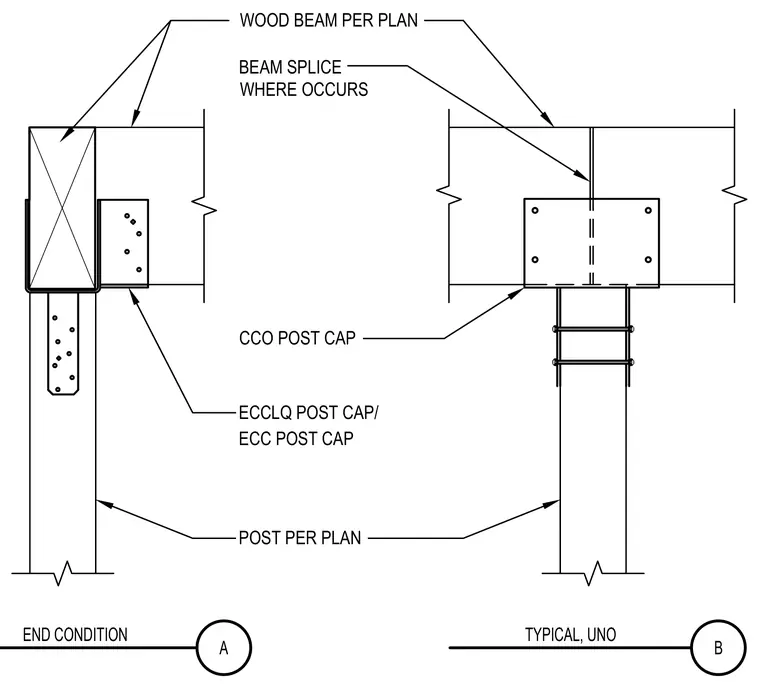

Wood beams per plan connect to vertical wood posts per plan using CCO or ECCLQ/ECC post caps. A beam splice is located where required. Condition A shows an end condition, and Condition B shows a typical configuration unless noted otherwise.
WOOD BEAM PER PLAN BEAM SPLICE WHERE OCCURS CCO POST CAP POST PER PLAN A END CONDITION B TYPICAL, UNO ECCLQ POST CAP/ ECC POST CAP
