A structural steel stair framing connection incorporates hollow structural section stringers and vertical HSS posts. Concrete and metal pans at the treads and landings are provided by the stair manufacturer per the architectural plans. The first landing elevation aligns with the reference architectural datum.

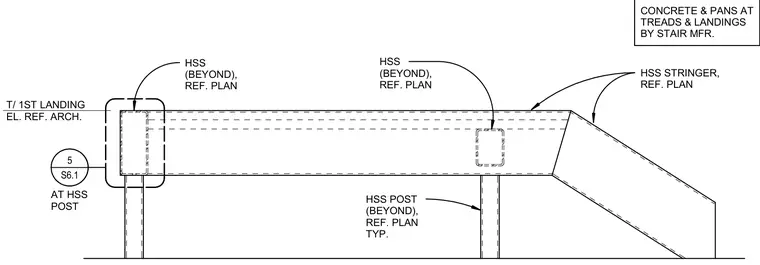

HSS STRINGER, REF. PLAN CONCRETE & PANS AT TREADS & LANDINGS BY STAIR MFR. HSS (BEYOND), REF. PLAN HSS POST (BEYOND), REF. PLAN TYP. HSS (BEYOND), REF. PLAN T/ 1ST LANDING EL. REF. ARCH. _____ S6.1 5 AT HSS POST
