W Girder and W Beams with Different Depth

Materials

Steel

Elements

Beams Connections / Plates

Connections

Welded Connection

About this detail

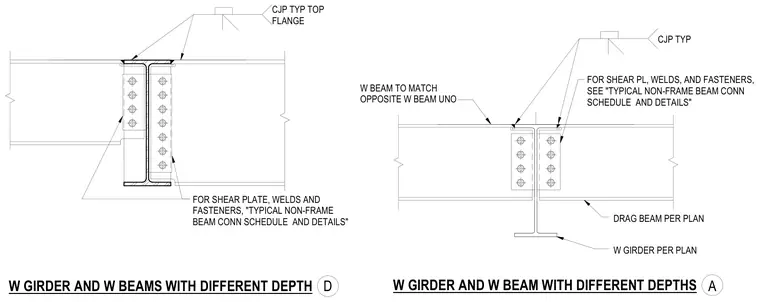

A wide-flange beam frames into a W girder of different depth using a bolted shear plate connection at the web. Complete joint penetration welds are applied at the top flange typically. Shear plates, welds, and fasteners are sized per the typical non-frame beam connection schedule and details unless noted otherwise. Opposite W beams are matched as indicated per plan.
