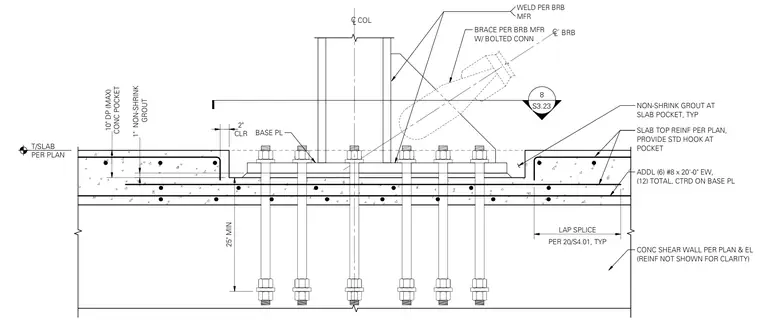

A structural steel column and buckling-restrained brace connect to a base plate anchored into a reinforced concrete shear wall and slab pocket. A one-inch layer of non-shrink grout fills the space beneath the base plate, while the concrete pocket reaches a maximum depth of ten inches with a two-inch minimum clearance. Slab top reinforcement includes additional number eight bars measuring twenty feet long each way, totaling twelve bars centered on the base plate with standard hooks at the pocket per the structural drawings. The brace connects per the manufacturer requirements with bolted connections and welded attachments.
BRB COL T/SLAB PER PLAN BRACE PER BRB MFR W/ BOLTED CONN NON-SHRINK GROUT AT SLAB POCKET, TYP BASE PL GROUT 1" NON-SHRINK SLAB TOP REINF PER PLAN, PROVIDE STD HOOK AT POCKET ADDL (6) #8 x 20'-0" EW, (12) TOTAL, CTRD ON BASE PL PER 20/S4.01, TYP LAP SPLICE S3.23 8 WELD PER BRB MFR CONC POCKET 10" DP (MAX) CONC SHEAR WALL PER PLAN & EL (REINF NOT SHOWN FOR CLARITY) 25" MIN CLR 2" C L C L
