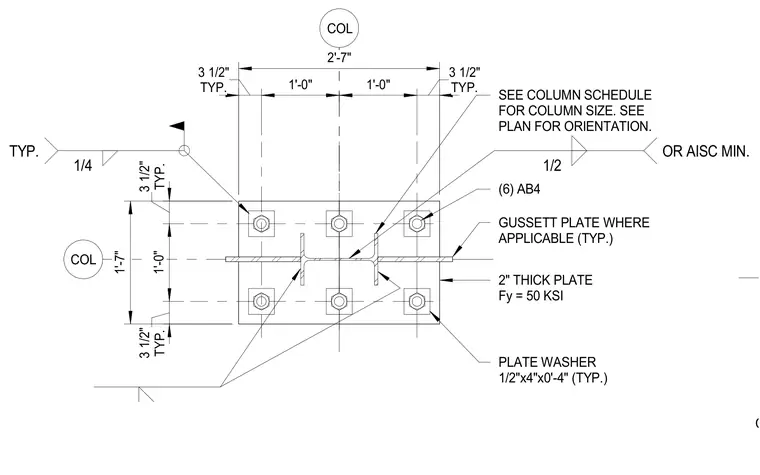

This structural detail shows a steel column base plate connection utilizing a two-inch thick steel plate with a yield strength of fifty KSI. The assembly is anchored with six anchor bolts and includes plate washers measuring one-half by four by four inches. Gusset plates are provided where applicable, welded with a quarter-inch fillet weld or per American Institute of Steel Construction minimum standards. The column size is determined per the column schedule, and orientation is coordinated with the structural plans.
COLUMN SCHEDULE 1" THICK PLATE 2" THICK PLATE Fy = 50 KSI (6) AB4 PLATE WASHER 1/2"x4"x0'-4" (TYP.) 2'-7" COL COL 1/4 TYP. TYP. 3 1/2" 1'-0" 1'-0" TYP. 3 1/2" GUSSETT PLATE WHERE APPLICABLE (TYP.) SEE COLUMN SCHEDULE FOR COLUMN SIZE. SEE PLAN FOR ORIENTATION. 1/2 OR AISC MIN. 1'-7" TYP. 3 1/2" 1'-0" TYP. 3 1/2"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
