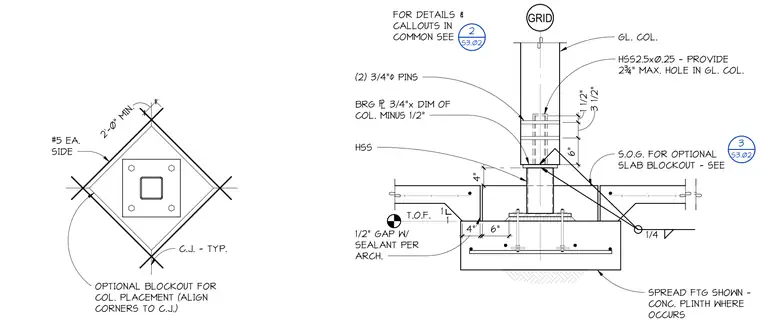

A hollow structural section column bears on a bearing plate supported by a concrete spread footing or plinth. Two three-quarter-inch diameter pins connect through the hollow structural section, which features a two-and-three-quarter-inch maximum hole. A slab on grade surrounds the assembly with an optional slab blockout and a one-half-inch gap filled with sealant per architectural specifications. Reinforcing includes number five bars on each side and optional blockouts for column placement aligned to construction joints.
GRID T.O.F. OPTIONAL BLOCKOUT FOR COL. PLACEMENT (ALIGN CORNERS TO C.J.) C.J. - TYP. 2'-0" MIN. #5 EA. SIDE 1 1/2" 3 1/2" 6" HSS2.5x0.25 - PROVIDE 2¾" MAX. HOLE IN GL. COL. GL. COL. S.O.G. FOR OPTIONAL SLAB BLOCKOUT - SEE (2) 3/4". PINS BRG - 3/4"x DIM OF COL. MINUS 1/2" HSS 4" 1/4 SPREAD FTG SHOWN - CONC. PLINTH WHERE OCCURS FOR DETAILS & CALLOUTS IN COMMON SEE 2 S3.02 3 S3.02 1/2" GAP W/ SEALANT PER ARCH. 6" 4" 1 1
