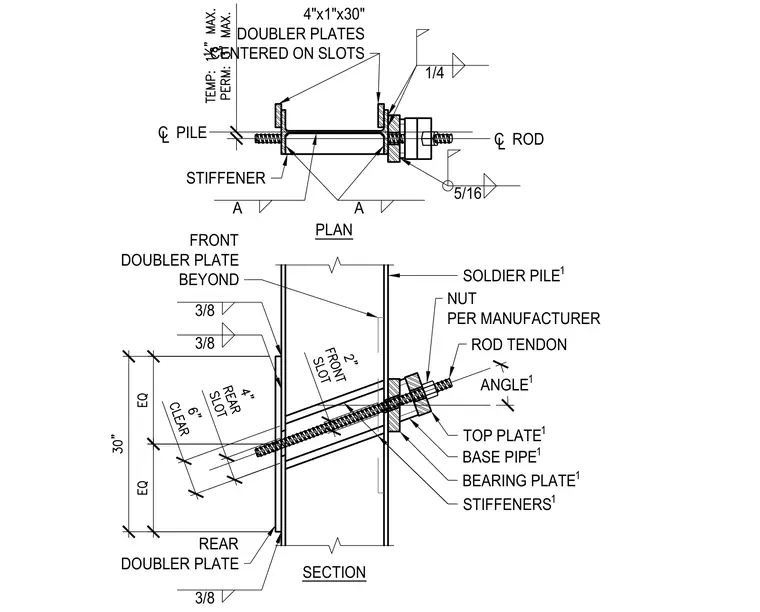

A soldier pile tieback connection detail featuring a threaded rod tendon passing through slotted webs and flanges. The assembly includes a base pipe, top plate, angle, and bearing plate secured with a manufacturer-specified nut. Front and rear doubler plates, measuring four inches by one inch by thirty inches, are centered on the slots and welded with three-eighth-inch fillet welds. Internal stiffeners and web stiffeners reinforce the structural shape. The thirty-inch vertical dimension coordinates slot clearance and equal spacing.
PLAN SECTION ANGLE 1 TOP PLATE 1 BASE PIPE 1 BEARING PLATE 1 STIFFENERS 1 SOLDIER PILE 1 FRONT DOUBLER PLATE BEYOND REAR DOUBLER PLATE ROD TENDON NUT PER MANUFACTURER A A C ROD L C PILE L STIFFENER 4"x1"x30" DOUBLER PLATES CENTERED ON SLOTS 1/4 5/16 3/8 3/8 3/8
