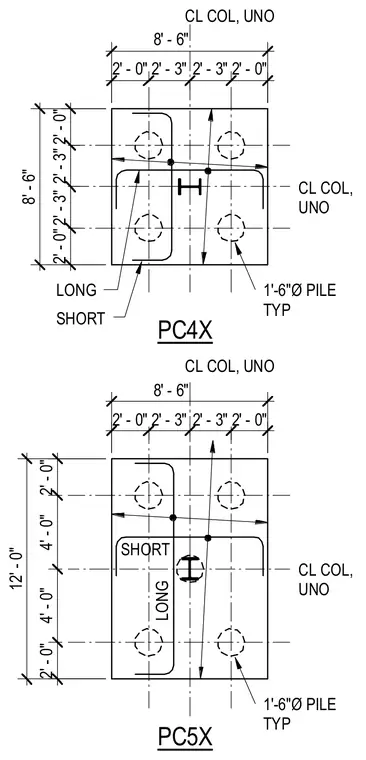

These structural plans illustrate two distinct pile cap configurations designated as PC4X and PC5X. The PC4X cap measures eight feet six inches square and is supported by four typical eighteen-inch diameter piles positioned near each corner. The PC5X cap measures eight feet six inches by twelve feet and incorporates five typical eighteen-inch diameter piles arranged with extended spacing. Both pile caps detail reinforcing steel placement with long and short bars, alongside column centerlines noted as typical unless otherwise indicated.
PC5X CL COL, UNO CL COL, UNO 8' - 6" 2' - 0" 2' - 3" 2' - 3" 2' - 0" 2' - 0" 4' - 0" 4' - 0" 2' - 0" 12' - 0" 1'-6"Ø PILE TYP PC4X CL COL, UNO CL COL, UNO 8' - 6" 2' - 0" 2' - 3" 2' - 3" 2' - 0" 2' - 0" 2' - 3" 2' - 3" 2' - 0" 8' - 6" 1'-6"Ø PILE TYP LONG SHORT LONG SHORT
