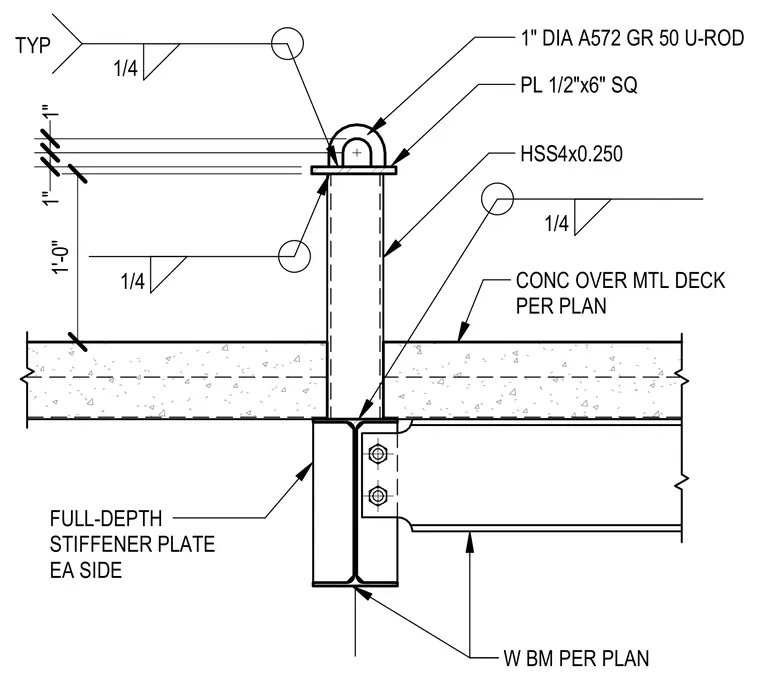

A one-inch diameter ASTM A572 Grade 50 U-rod passes through a half-inch square steel plate welded to a hollow structural section post. The HSS4x0.250 post penetrates a concrete over metal deck and connects to a wide-flange beam below. Full-depth stiffener plates are welded to each side of the supporting beam web. Quarter-inch fillet welds secure the components throughout the assembly.
1" DIA A572 GR 50 U-ROD PL 1/2"x6" SQ HSS4x0.250 CONC OVER MTL DECK PER PLAN W BM PER PLAN FULL-DEPTH STIFFENER PLATE EA SIDE 1'-0" 1" 1" 1/4 1/4 TYP 1/4
