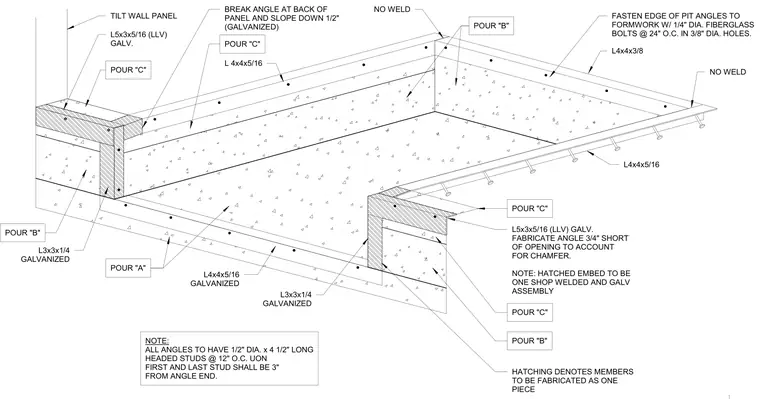

Galvanized steel angles L4x4x5/16, L4x4x3/8, L3x3x1/4, and L5x3x5/16 (long leg vertical) integrate into a tilt-up concrete wall panel. Pit angles fasten to formwork via 1/4-inch diameter fiberglass bolts spaced at 24 inches on center through 3/8-inch diameter holes. Angles are fabricated 3/4-inch short of the opening to accommodate chamfering. Hatched embed components are shop-welded and galvanized as a single assembly; all angles feature 1/2-inch diameter by 4 1/2-inch long headed studs spaced at 12 inches on center, unless otherwise noted. The first and last studs are positioned 3 inches from the angle end. A break angle is provided at the back of the panel with a 1/2-inch downward slope.
Text on the drawing
L 4x4x5/16 L4x4x5/16 GALVANIZED L3x3x1/4 GALVANIZED POUR "B" POUR "C" L5x3x5/16 (LLV) GALV. FABRICATE ANGLE 3/4" SHORT OF OPENING TO ACCOUNT FOR CHAMFER. NOTE: HATCHED EMBED TO BE ONE SHOP WELDED AND GALV ASSEMBLY L4x4x5/16 NO WELD FASTEN EDGE OF PIT ANGLES TO FORMWORK W/ 1/4" DIA. FIBERGLASS BOLTS @ 24" O.C. IN 3/8" DIA. HOLES. L4x4x3/8 NO WELD BREAK ANGLE AT BACK OF PANEL AND SLOPE DOWN 1/2" (GALVANIZED) L5x3x5/16 (LLV) GALV. TILT WALL PANEL POUR "C" POUR "C" L3x3x1/4 GALVANIZED POUR "A" POUR "B" POUR "C"
