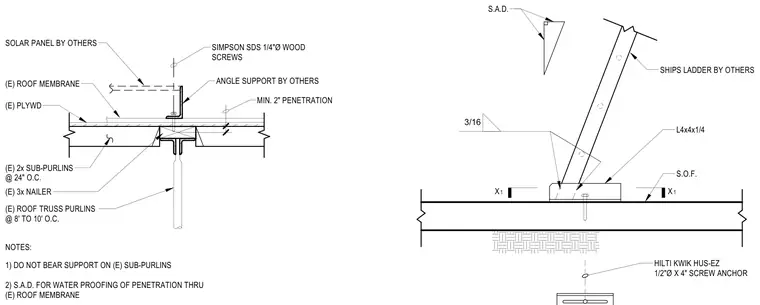

The ship's ladder base connects to an angle support mounted over existing roof construction including roof truss purlins spaced eight to ten feet on center, three-inch nailers, two-inch sub-purlins spaced twenty-four inches on center, plywood sheathing, and a roof membrane. The ladder foot secures to an L4x4x1/4 structural steel angle with three-sixteenth-inch fillet welds. A Hilti Kwik Hus-Ez one-half-inch diameter by four-inch screw anchor fastens the angle support through the roofing assembly down to the supporting members. Simpson SDS one-quarter-inch diameter wood screws attach the angle support by others. The assembly includes specific notes requiring that supports avoid bearing directly on existing sub-purlins and specifying waterproofing of penetrations through the existing roof membrane with a minimum two-inch penetration.
S.A.D. SHIPS LADDER BY OTHERS 3/16 L4x4x1/4 S.O.F. X 1 X 1 HILTI KWIK HUS-EZ 1/2"Ø X 4" SCREW ANCHOR SIMPSON SDS 1/4"Ø WOOD SCREWS ANGLE SUPPORT BY OTHERS SOLAR PANEL BY OTHERS (E) ROOF MEMBRANE (E) PLYWD (E) 2x SUB-PURLINS @ 24" O.C. (E) 3x NAILER (E) ROOF TRUSS PURLINS @ 8' TO 10' O.C. NOTES: 1) DO NOT BEAR SUPPORT ON (E) SUB-PURLINS 2) S.A.D. FOR WATER PROOFING OF PENETRATION THRU (E) ROOF MEMBRANE MIN. 2" PENETRATION
