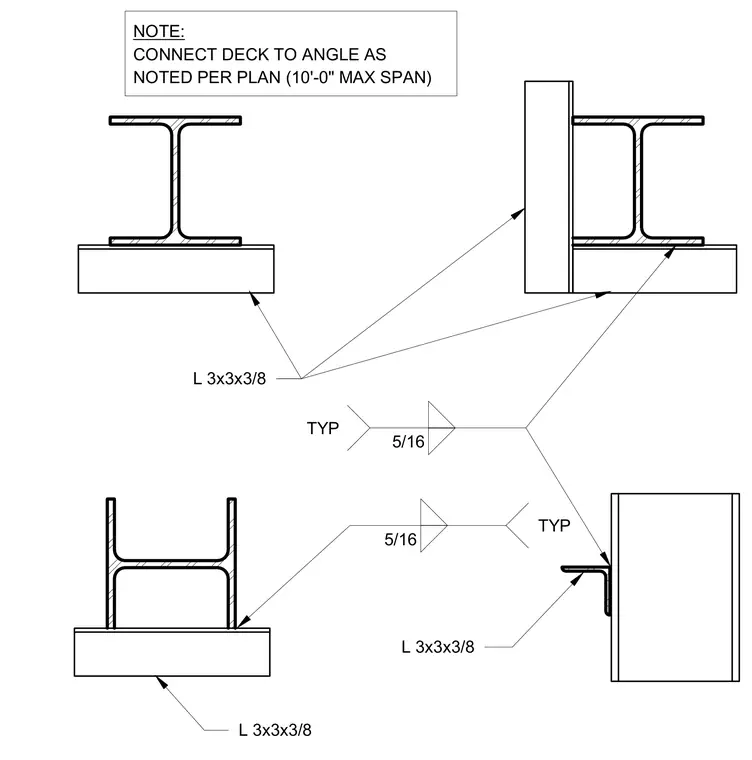

Steel trim angles formed by L 3x3x3/8 shapes frame around structural slab and wall openings with five-sixteenths inch fillet welds typically joining the assembly. The metal deck connects to the angle as noted per plan with a ten foot maximum span.
L 3x3x3/8 5/16 TYP 5/16 TYP L 3x3x3/8 L 3x3x3/8 NOTE: CONNECT DECK TO ANGLE AS NOTED PER PLAN (10'-0" MAX SPAN)
