Rectangular and Square Embed Plate Connections

Materials

Concrete Steel

Elements

Beams Anchors / Embeds Connections / Plates

Connections

Bolted Connection Embed Plate

About this detail

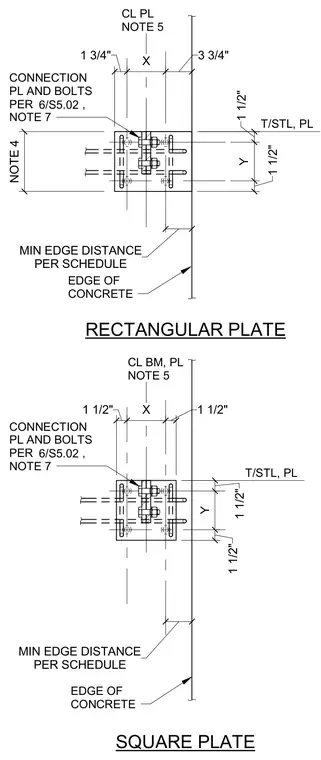

Steel embed plates are anchored into concrete edge conditions with specific centerlines, dimensions, and minimum edge distances per schedule. The connection plates and bolts are detailed per sheet reference notes with defined X and Y spacing offsets. Edge distances for the concrete and plate alignments maintain strict clearances relative to the structural steel beam centerlines.
