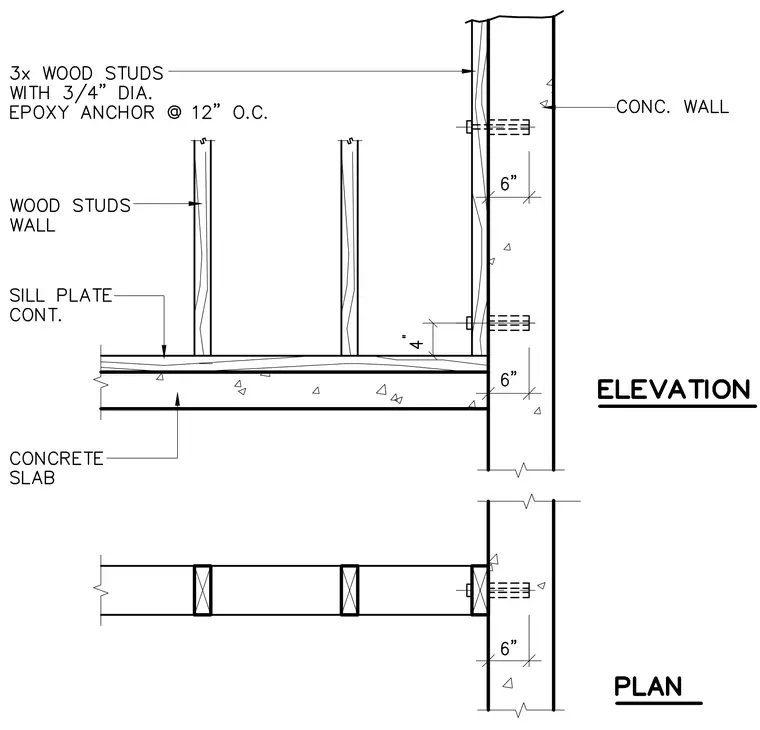

A wood studs wall connects to a concrete wall using three-ply wood studs secured with three-quarter-inch diameter epoxy anchors spaced at twelve inches on center. The continuous sill plate bears directly on a concrete slab. Vertical wood studs rise from the continuous sill plate.
