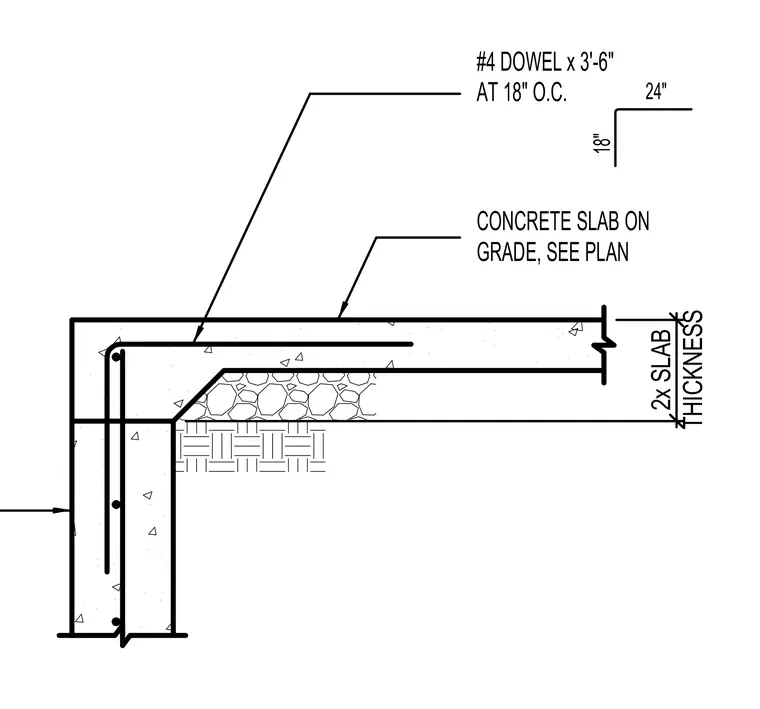

A concrete slab on grade features a thickened edge supported by compacted subgrade and crushed stone base. Number four reinforcing dowels measuring three feet six inches in length are placed at eighteen inches on center. The slab thickness transitions to twice the standard thickness at the edge condition.
24" 18" #4 DOWEL x 3'-6" AT 18" O.C. CONCRETE SLAB ON GRADE, SEE PLAN 2x SLAB THICKNESS
