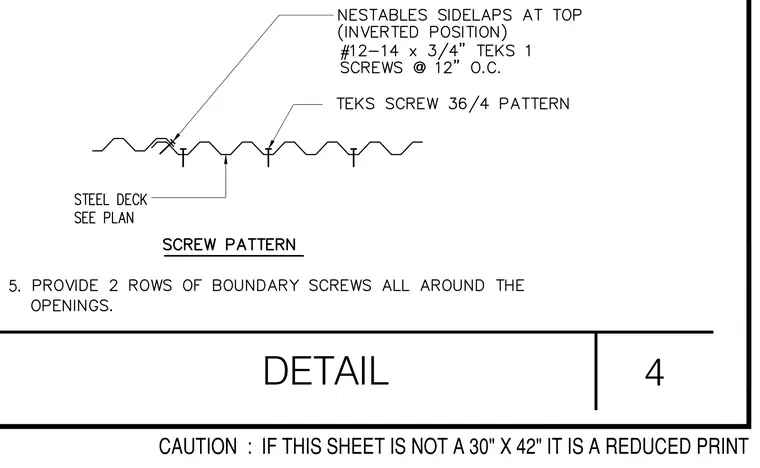

Nestable steel deck sidelaps are positioned at the top in an inverted configuration and fastened with number twelve dash fourteen by three-quarter-inch Teks one screws spaced at twelve inches on center. The steel deck features designated Teks screw patterns with two rows of boundary screws installed all around openings.
