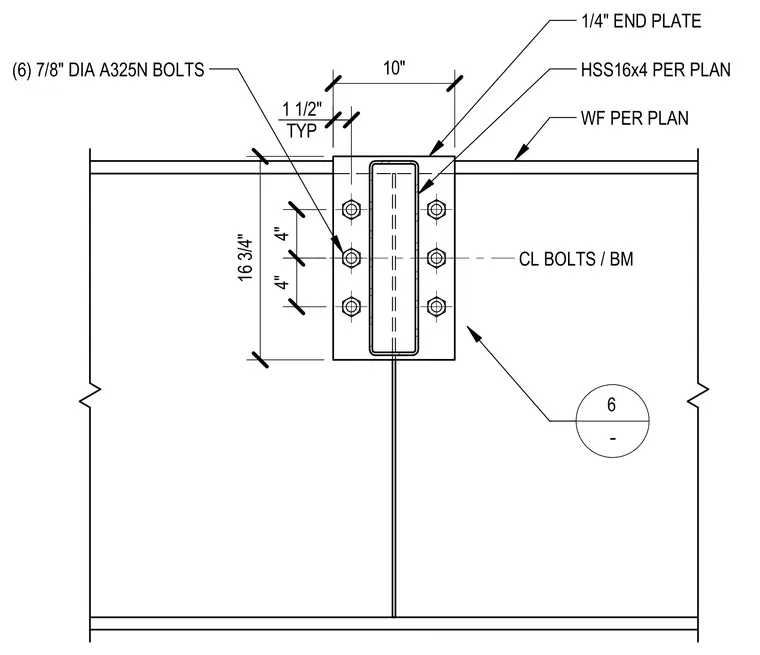

An HSS16x4 beam frames into a wide flange girder sized per plan using a welded 1/4-inch end plate. The connection is secured with six 7/8-inch diameter A325N bolts arranged symmetrically in two vertical rows of three. The end plate measures 10 inches wide by 16-3/4 inches high with a 1-1/2 inch typical edge distance and 4-inch vertical bolt spacing.
- 6 10" 16 3/4" 1/4" END PLATE TYP 1 1/2" 4" 4" CL BOLTS / BM HSS16x4 PER PLAN (6) 7/8" DIA A325N BOLTS WF PER PLAN
