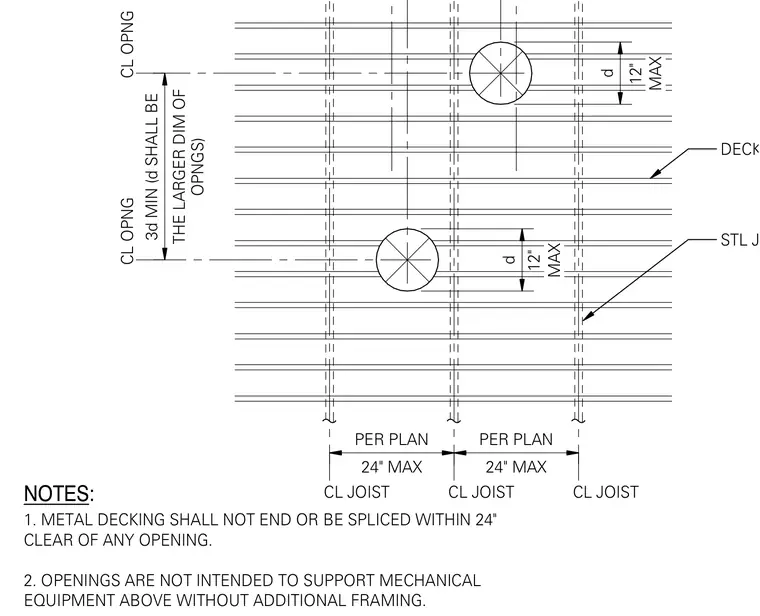

Metal decking is framed by steel joists below with designated spacing and positioning rules for circular openings. Openings must maintain a maximum dimension of twelve inches and a minimum spacing of three times the opening diameter from center to center. Metal decking splices and ends are restricted from occurring within twenty-four inches clear of any opening. These penetrations are explicitly excluded from supporting mechanical equipment overhead unless supplementary structural framing is provided.
d d 24" MAX PER PLAN 24" MAX PER PLAN CL JOIST DECK FLUTE, TYP STL JOIST BELOW, TYP NOTES: 1. METAL DECKING SHALL NOT END OR BE SPLICED WITHIN 24" CLEAR OF ANY OPENING. 2. OPENINGS ARE NOT INTENDED TO SUPPORT MECHANICAL EQUIPMENT ABOVE WITHOUT ADDITIONAL FRAMING. 12" MAX 12" MAX CL OPNG THE LARGER DIM OF 3d MIN (d SHALL BE OPNGS) CL OPNG CL JOIST CL JOIST
