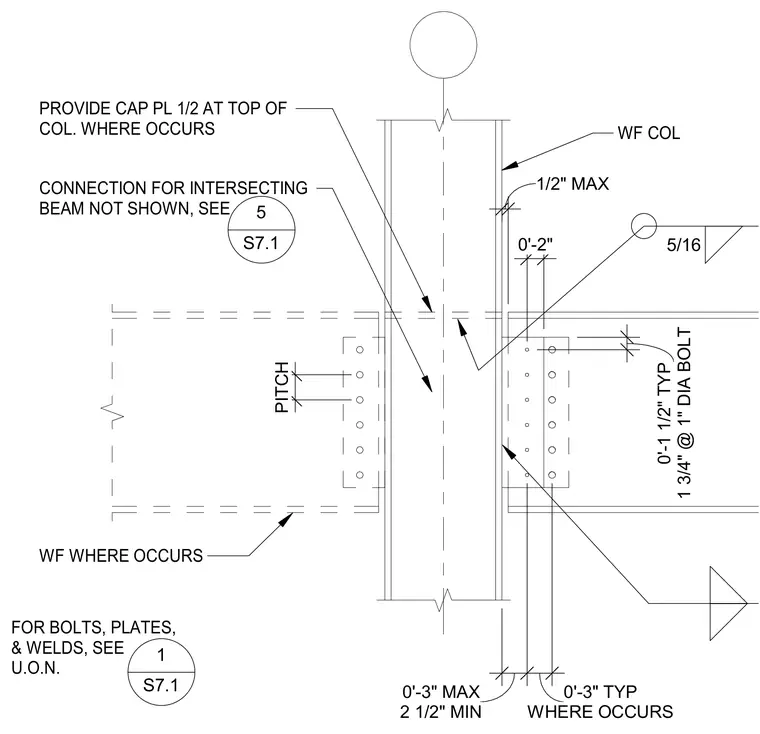

A wide flange beam frames into a wide flange column flange using a welded-bolted connection with a one-half inch cap plate at the top of the column. The beam web connects via a plate secured with one-inch diameter bolts spaced at one and three-quarter inches typically with a two-inch pitch. Fillet welds of five-sixteenths inch size are specified where applicable. Clearances and edge distances are maintained at a maximum of one-half inch and a minimum of two and one-half inches.
5/16 2 1/2" MIN 0'-3" MAX WHERE OCCURS 0'-3" TYP 1 3/4" @ 1" DIA BOLT 0'-1 1/2" TYP 1/2" MAX 0'-2" PITCH WF COL PROVIDE CAP PL 1/2 AT TOP OF COL. WHERE OCCURS CONNECTION FOR INTERSECTING BEAM NOT SHOWN, SEE 5 S7.1 WF WHERE OCCURS FOR BOLTS, PLATES, & WELDS, SEE U.O.N. 1 S7.1
