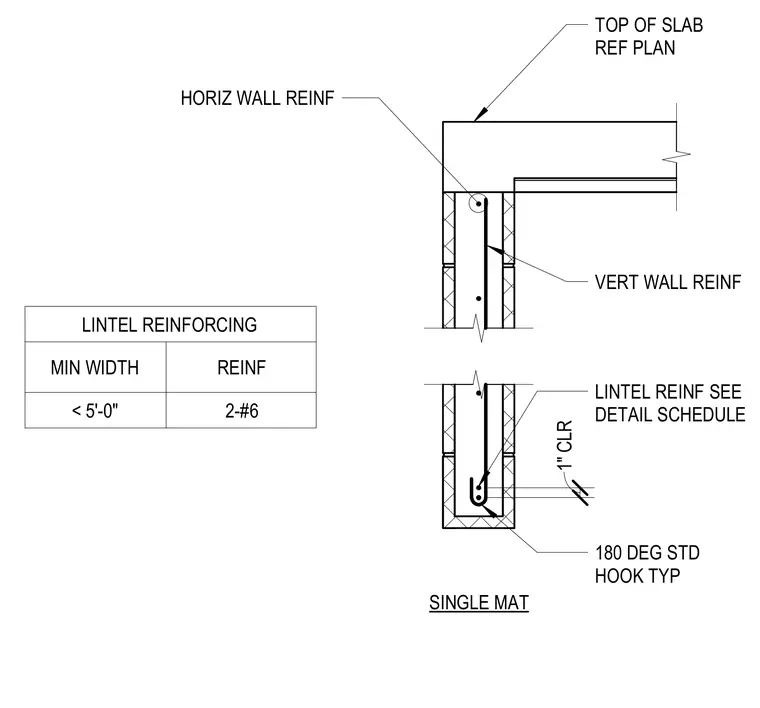

A reinforced concrete wall lintel details horizontal wall reinforcement with a one hundred eighty degree standard hook typical, vertical wall reinforcement, and lintel reinforcing sized per the detail schedule with two number six bars for minimum widths under five feet. A single mat configuration maintains a one inch minimum clearance. The top of the slab is referenced per plan.
HORIZ WALL REINF 180 DEG STD HOOK TYP LINTEL REINF SEE DETAIL SCHEDULE VERT WALL REINF TOP OF SLAB REF PLAN SINGLE MAT 1" CLR MIN WIDTH < 5'-0" LINTEL REINFORCING REINF 2-#6
